A-2: Plug the Wi-Fi adapter into the USB-A port NOT THE IPAD 2.1A PORT and unplug any USB or ethernet connections.

A-3: Once the printer is power cycled, it will print a wireless information sheet.

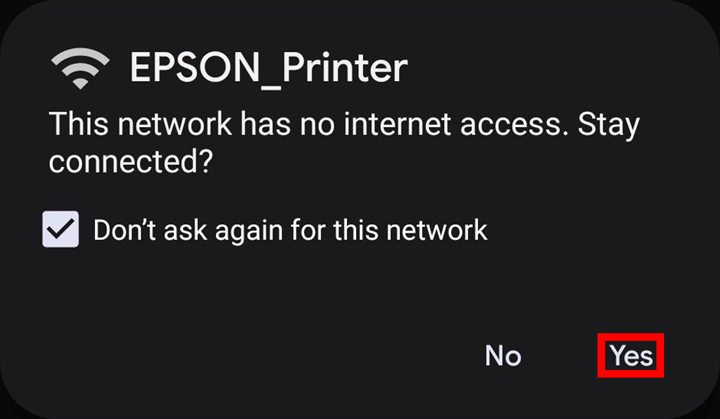

A-4: Connect to the SSID “EPSON_Printer” with passcode “12345678” on a phone. Say yes if it prompts to remain connected.

A-5: Open the Epson TM Utility app, and tap the blue bar at the top to search for a printer.

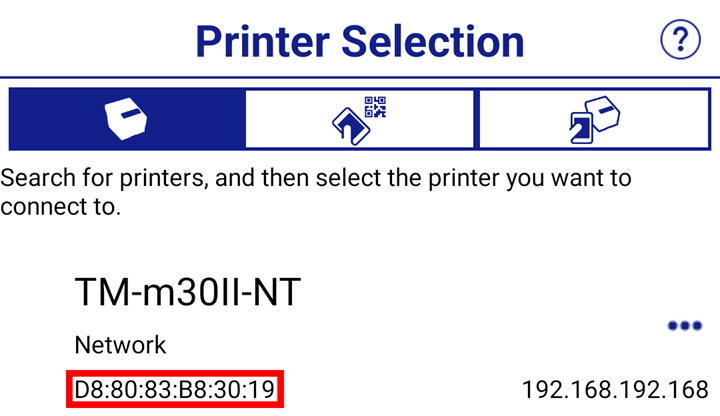

A-6: Select the printer that matches the MAC address printed.

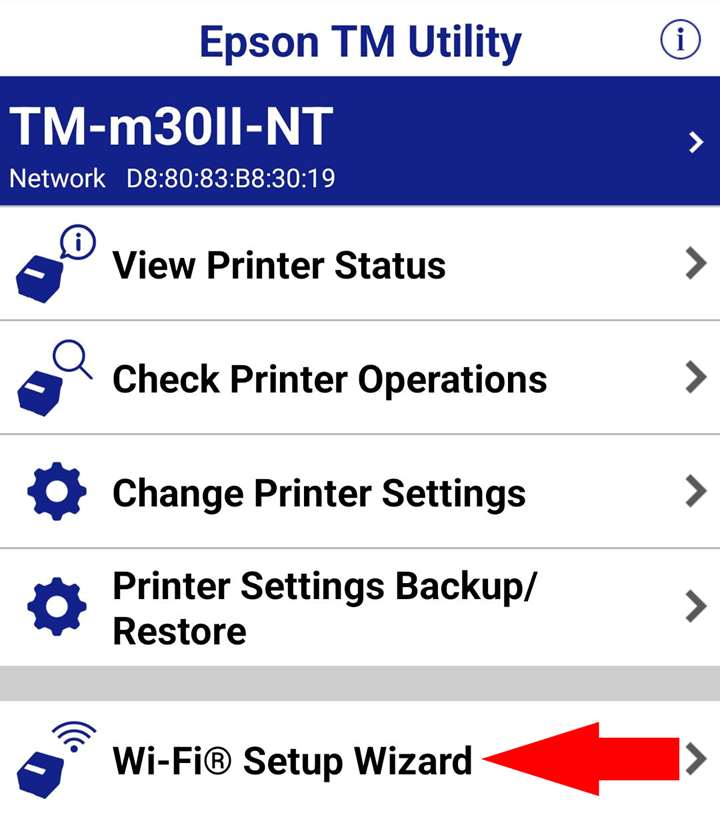

A-7: Tap Wi-Fi Setup Wizard.

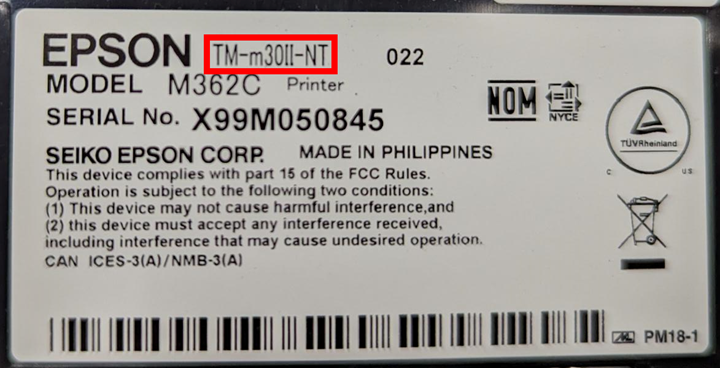

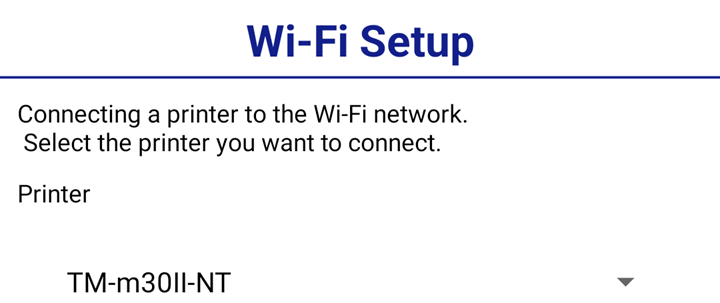

A-8: Select the correct printer model in the list. The model will be listed on the label on the back of the printer under the back cover.

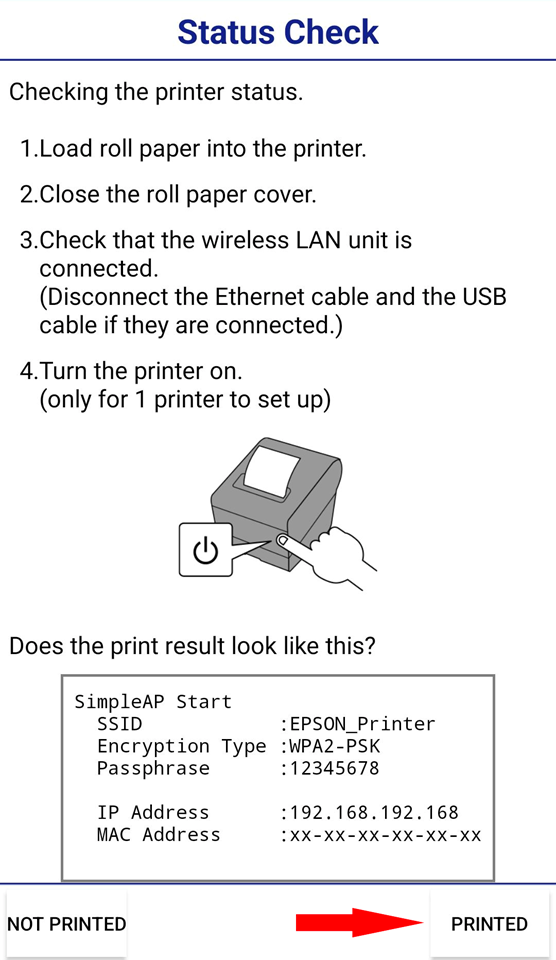

A-9: Confirm the wireless status sheet was printed.

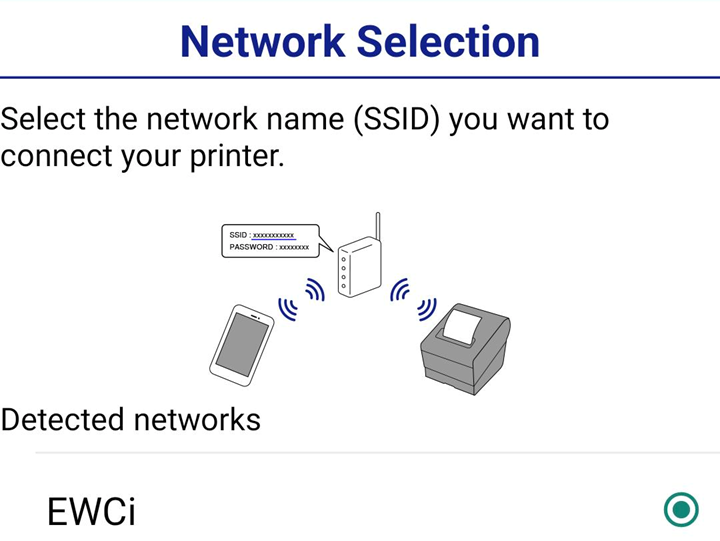

A-10: Select EWCi (NOT EUROPEAN WAX CENTER)

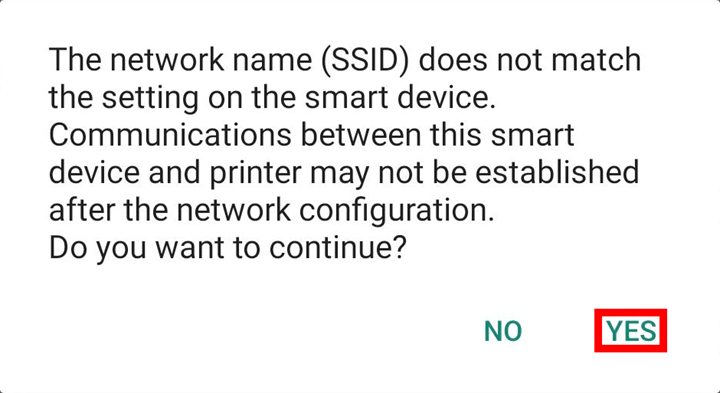

A-11: Proceed past the SSID mismatch warning.

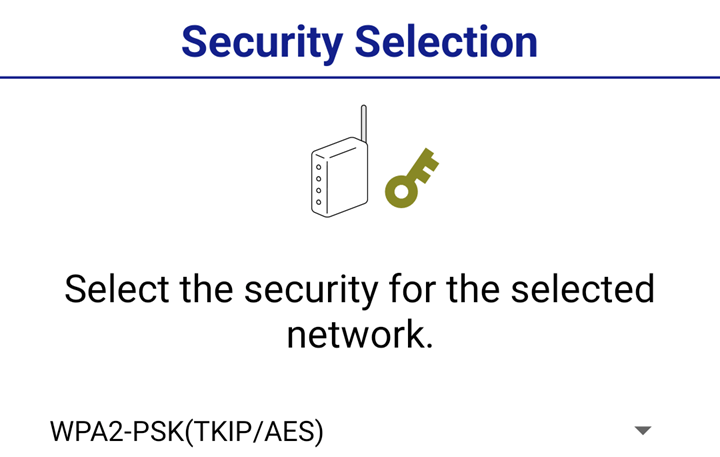

A-12: Select WPA2-PSK(TKIP/AES) NOT WPA-PSK(AES)

A-13: Enter the passphrase “1nW@n1#Rnal”

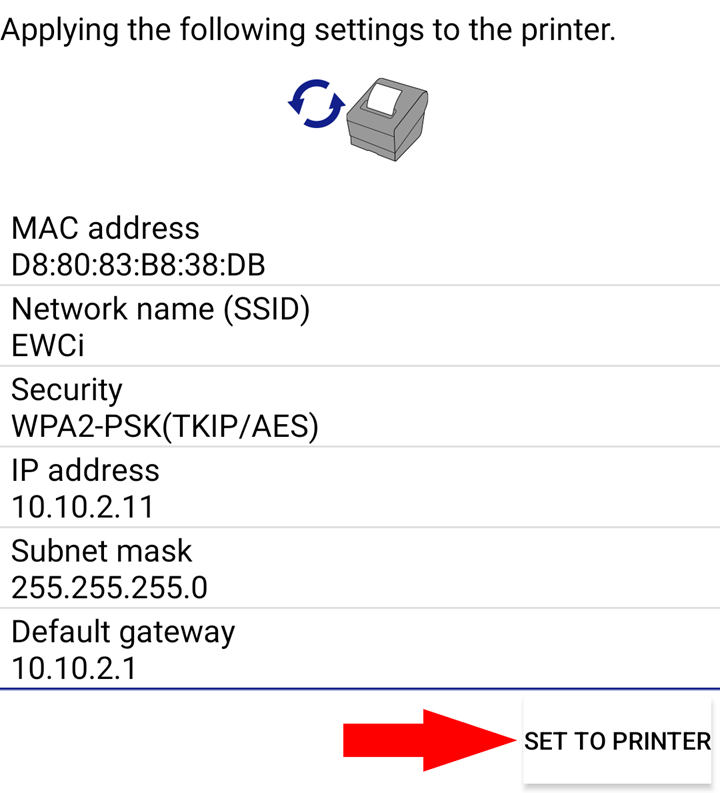

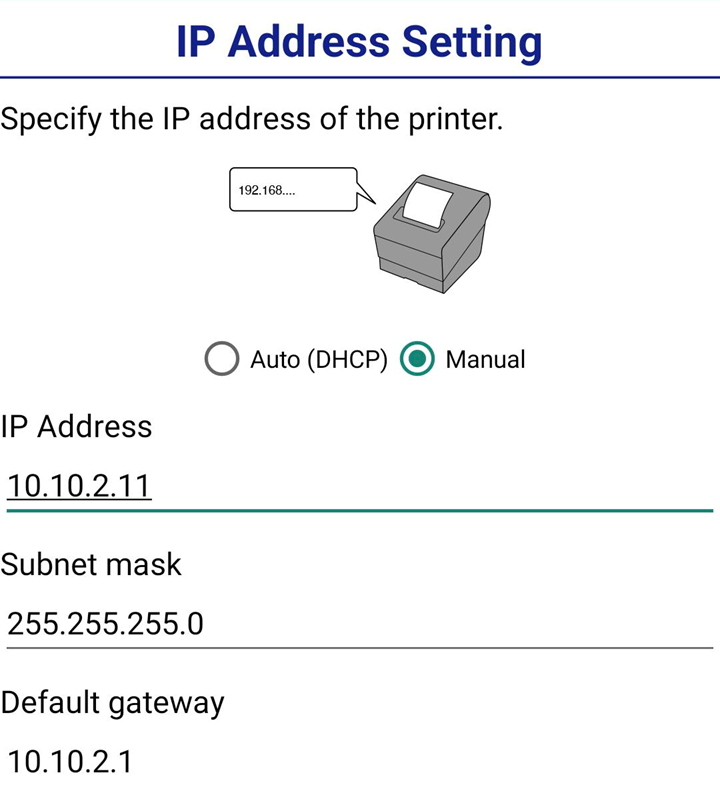

A-14: Select Manual NOT AUTO (DHCP) and enter the following details:

1. IP Address: 10.10.2.11 (Note: This is for counter 1 or if the center only has 1 receipt printer. Counter 2’s printer would be 10.10.2.12 and counter 3’s 10.10.2.13)

1. Subnet mask: 255.255.255.0

1. Default gateway: 10.10.2.1


B: Driver Setup

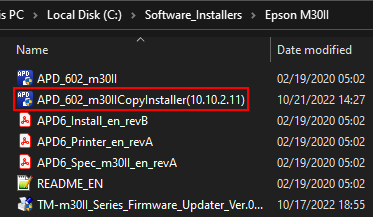

B-1: If the printer driver is not installed yet (visible in the Start Menu or list of installed programs as “Epson Advanced Printer Driver 6 for TM-M30II”), there should be an installer located in C:\Software_Installers\Epson M30II. The Version labeled “10.10.2.11” will install the drivers and automatically add the printer with that IP address as well. If the printer is for counter 2 or 3 or if only the standard “APD_602_m30II” is available, that version can also be used. Changing the IP address in the driver will be shown later.

B-2: To change from a USB installation or to change the IP address of the printer to connect to, open the “EPSON APD6 – TM Printer Settings” tool.

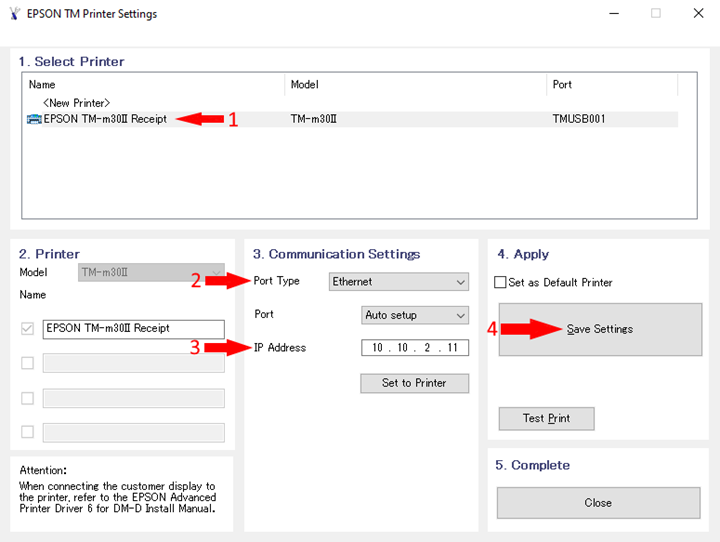

B-3: Select the printer to edit if one exists (note this one is already configured for USB), change the port type to “Ethernet”, set the IP Address, and Save. A test print can be done from within the tool as well.

C: Troubleshooting

1. A configuration and status sheet can be printed at any time by holding the SW button on the bottom of the printer down for approximately 5 seconds.

1. If EWCi is not broadcasting (printer is being configured off-site, etc), EWCi can be entered manually in the Network Selection step.

1. If the wrong details are put into the printer, it can be reset to factory defaults by turning the printer off and then holding the SW button on the bottom of the printer down while turning it back on. A message will print out confirming the unit will be reset. This may also need to be done if the

1. Occasionally, the printer may need another power cycle if after waiting at least 2 minutes, the printer is not on the network.
